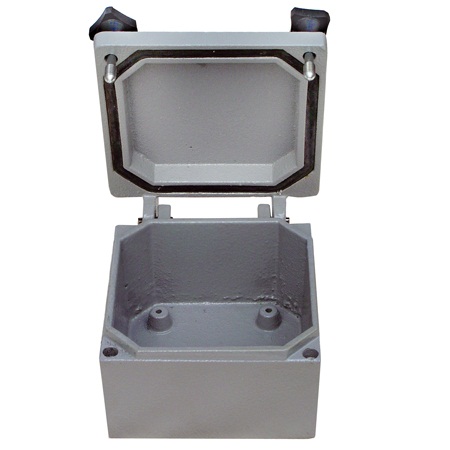

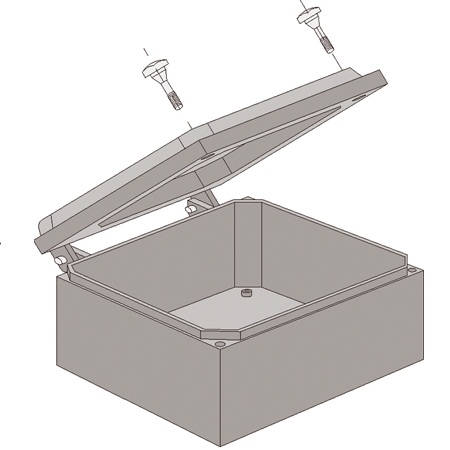

Technical characteristics
MATERIAL
Bottom and cover manufactured in aluminium alloy..
SURFACE FINISH
Coated with grey epoxi polyester powder (similar to 7042 RAL) with coarse texture, made by electrostatic projection and dry into an oven to 180-200ºC
CLOSURE
By means of doorknobs external to the gasket.
WATERTIGHTNESS
A neoprene gasket embedded in the cover provides the cofret with a degree of protection of IP-65, according to UNE 20324, CEI 529 and EN 60529.
Tamaño | Tamaño 100X100X70mm 000500E, Tamaño 150X150X100mm 0000501, Tamaño 200X200X105mm 0000502, Tamaño 320X320X145mm 0000503 |
---|
