Technical characteristics

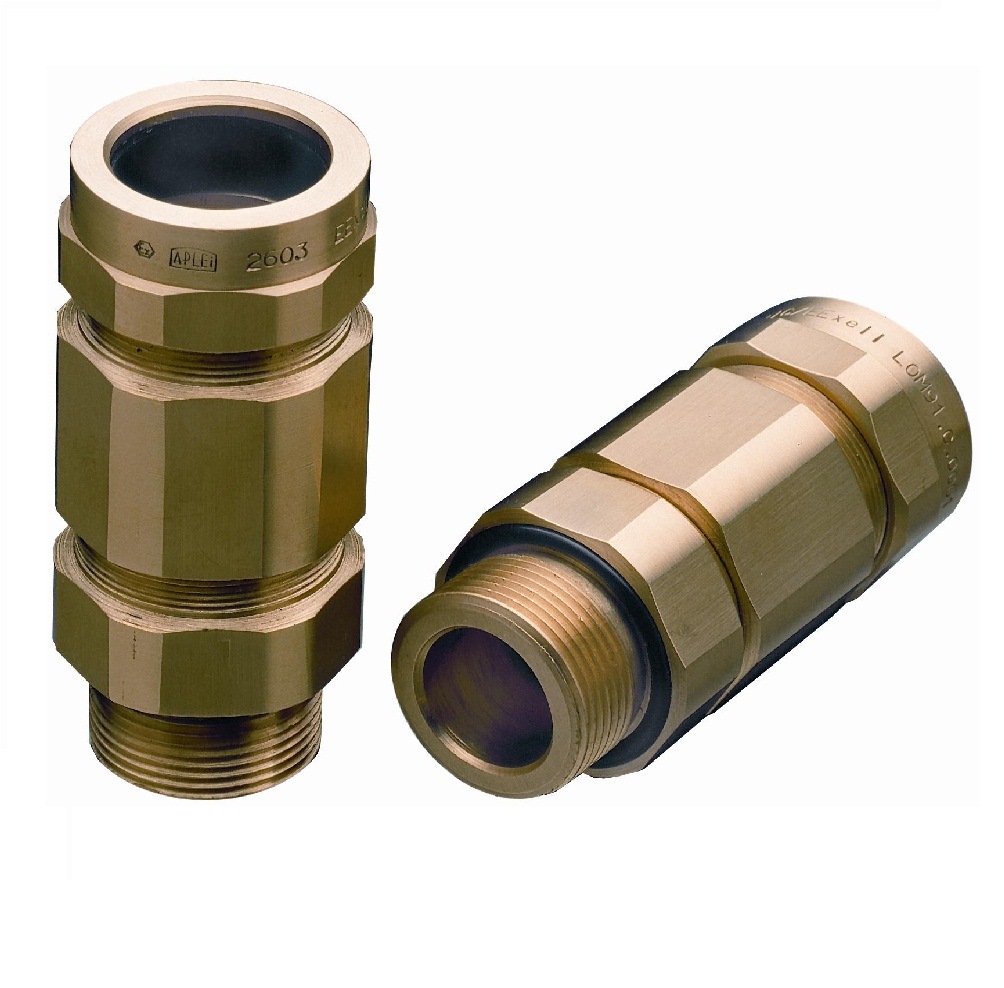

MANUFACTURING: Cable glands 260 series are built in electroplated brass, however, and on request, can also be manufactured in electro galvanized steel, stainless steel and aluminium. The elastomeric seals are black with an approximate hardness between 50 and 70 shores.
THREAD: The usual threaded is carried out in accordance with standard NPT ASA B. 2.1 ., and Metrics according to ISO 261, with average quality or higher according to ISO 965..
SEALING: For the fulfilment of protection degrees listed according to UNE 20324, DIN EN 40050 and EN 60529 and ensure the protection degree with the enclosure on which they are installed, the cable entries and accessories with cylindrical thread must have a seal.
EARTH GROUNDING: Electrical continuity on cable glands, made in metal, is sufficiently executed through the threaded part of the gland to the box.
Standards:
Conformity:
LOM 02ATEX2034X
IECEx LOM17.0003X
RU-C-ES.ΓБ06.B.00397
PCEC CE13.5025X
Manufactured according to guidelines
2014/34/UE (ATEX), TP TC 012/2011
Protection mode:
II2G Ex e IIC T6 Gb
II2G Ex d IIC T6 Gb
II2D Ex tb IIIC T85ºC Db
Area of use:
zona 1, 2, 21, 22
Degree of protection
según EN60529 IP65, IP66 (bajo pedido)
Temperature of use
Ta: -20ºC/+80ºC o -40ºC/+80ºC (bajo pedido)
Applicable Standards:
EN 60079-0, EN 60079-1, EN 60079-7, EN 60079-31
IEC 60079-0, IEC 60079-1, IEC 60079-7,IEC 60079-31
GB3836.1, GB3836.2, GB3836.3, GB12476.1
ΓOCT 30852.0, ΓOCT 308.52.5, ΓOCT 14254-96
